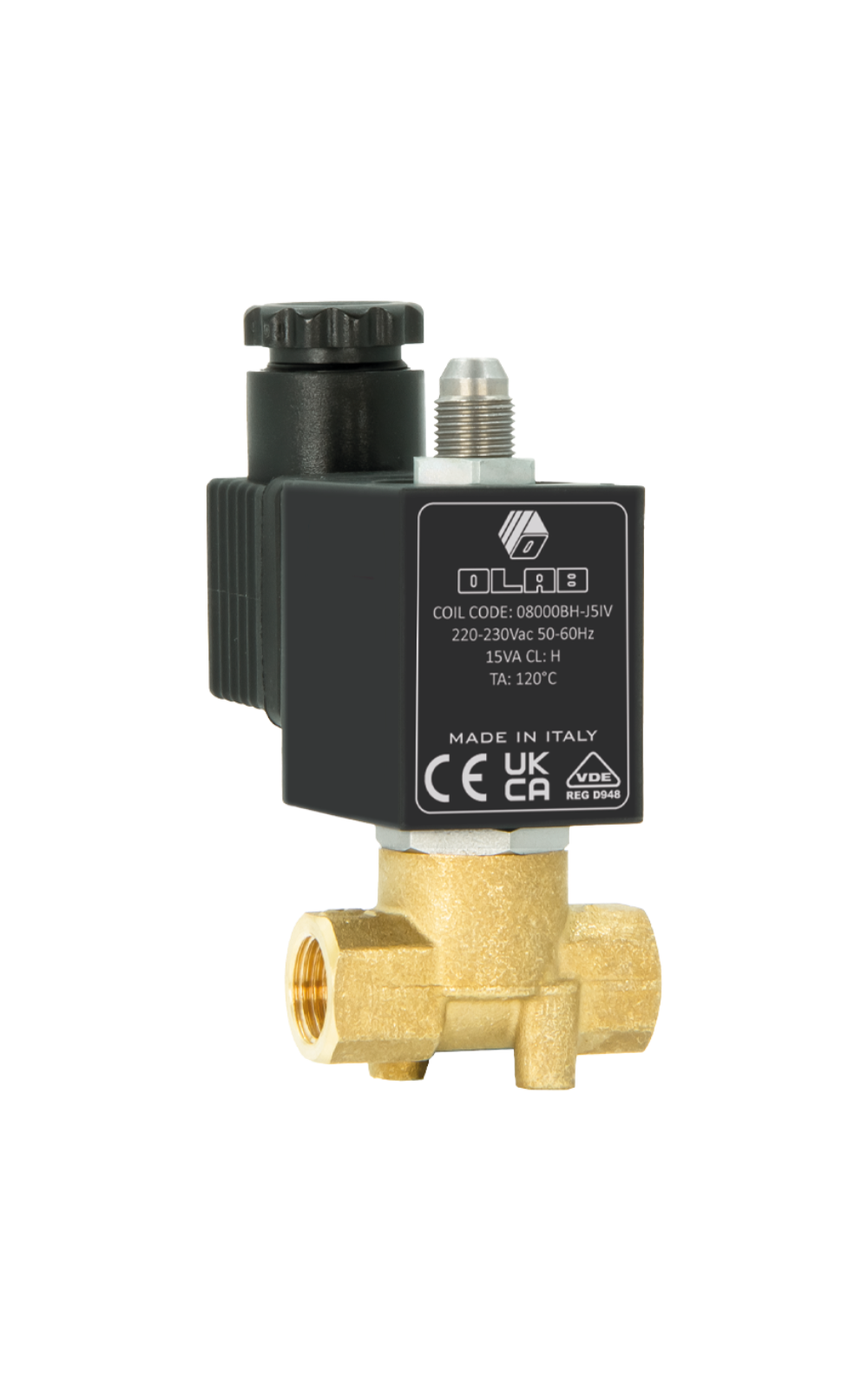

OLAB Italy 3 Way Solenoid

The 08251 Series solenoid valves are the ideal solution for high-performance professional hydraulic systemsthat require thermal resistance, intensive operating cycles, and reliable performance. Thanks to their direct acting principle, they do not require a minimum differential pressure to operate, ensuring maximum versatilityeven in low-pressure conditions.

Their inspectable structure allows for quick maintenance, enabling easy cleaning or internal component replacement while minimizing system downtime. The valve body is made of EN12165-CW617N forged yellow brass, combined with a laser-welded AISI 304L stainless steel sleeve and a fixed core, ensuring long-lasting strength and durability. The DN sealing insert in AISI 303 stainless steel offers superior wear resistance, even under demanding cycles or with aggressive fluids. The sealing gaskets, including the OLAB certified FKM PLUS Hi-Performance option, guarantee broad chemical compatibility, including with food-grade fluids.

Completing the configuration is a 30 mm Ø14 coil in insulation class H (180°C), ideal for high-temperature environments, and internal components in stainless steel, which ensure maximum durability. With an operating pressure of up to 40 bar and a temperature range from -15°C to +160°C, the 08251 Seriesis CE, VDE certified, meeting the highest international quality standards.
