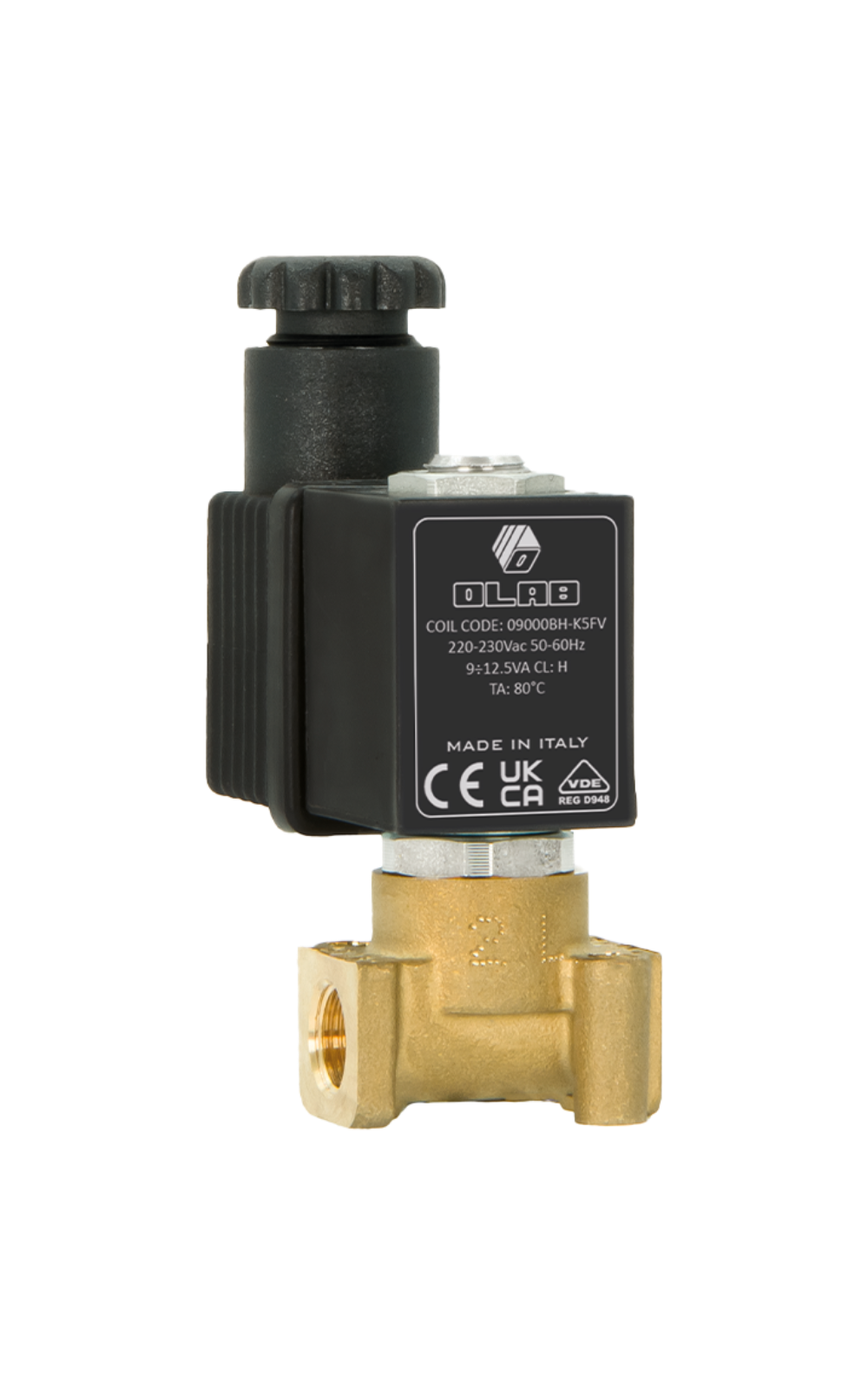

OLAB Italy 2 Way 1/8 Mini Solenoid

The 09850L Series is a 2/2-way normally closed in-line solenoid valve with direct-acting operation, designed to deliver compact performance and full compatibility with food-grade fluids. Built with certified materials such as CW510L-OT57NSF USA brass and equipped with 100% PFAS-FREE RBX™ HI-PERFORMANCE seals certified by OLAB, this valve ensures safe integration in applications involving food, beverage, and other sensitive media.

The laser-welded AISI 304 stainless steel guide tube with fixed core, combined with the inspectable design, allows for internal cleaning or replacement of components, making it a practical choice for semi-professional systems that demand reliability and maintainability. Thanks to the 9000BH coil (22 mm Ø10, insulation class H 180°C) and threaded M3 mounting holes, the valve offers compactness and secure fastening even in constrained spaces. Its direct-acting design requires no minimum pressure, enabling it to function effectively in low-pressure environments without compromising control precision.

Ideally suited for small hydraulic and pneumatic systems, this valve guarantees excellent performance where industrial-grade features are not essential but quality and safety cannot be compromised. With a maximum operating pressure of 30 bar (435 psi) and a temperature range from –15°C to +160°C (5°F to +320°F), the 09850L meets the needs of a wide variety of controlled fluid applications. Certified CE, VDE and NSF Component, it meets international standards for electrical safety and food-contact compliance.
