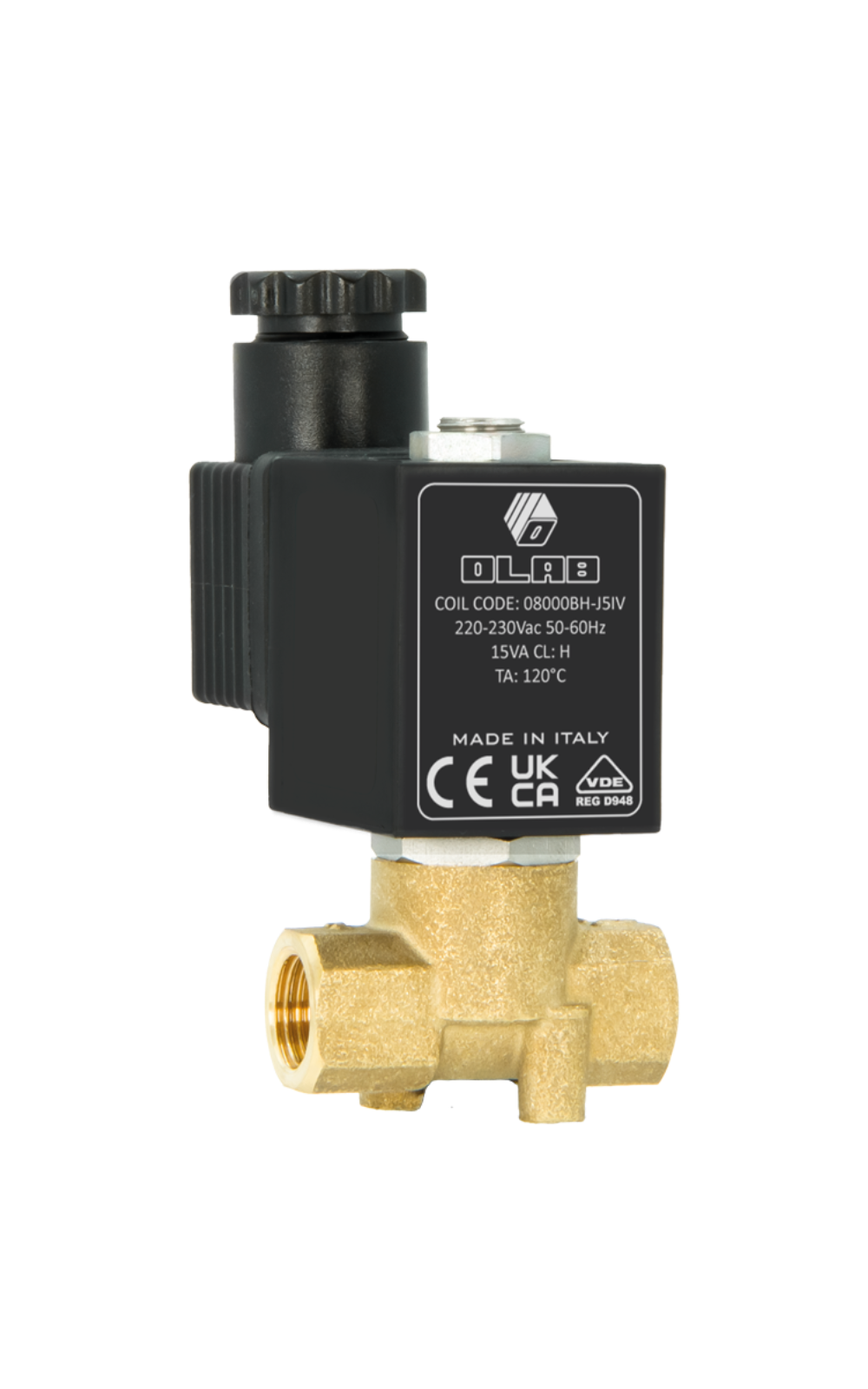

The SERIES 08201L solenoid valves are compact, inspectable, and direct-acting solutions designed to deliver high performance even in the absence of differential pressure. With an operating capacity of up to 40 bar (580 psi), they ensure system responsiveness and reliability even under demanding conditions. Equipped with OLAB-certified 100% PFAS-FREE RBX™ HI-PERFORMANCE seals, they guarantee maximum compatibility with food-grade fluids, excellent sealing performance, and long-lasting resistance to aggressive chemicals and high temperatures. The operating temperature range spans from -15°C to +160°C (+5°F to +320°F).The CW510L-OT57NSF USA brass body, compliant with NSF standards for food contact, is combined with AISI 304 stainless steel internal components—laser-welded sleeve and insert—for outstanding durability, corrosion resistance, and hygiene in sensitive applications. The 30 mm Ø14 coil, rated class H (180°C) and protected to IP65, allows installation in harsh industrial environments, ensuring safe operation in the presence of moisture or contaminants. The inspectable designenables quick access to internal parts for cleaning or maintenance, minimizing downtime. Backed by international certifications — CE, VDE, MOCA, NSF COMPONENT — this series is ideal for use in regulated sectors such as food, medical, and pharmaceutical industries, where precision, reliability, and compliance are critical.
